Specification:
|
Model
|

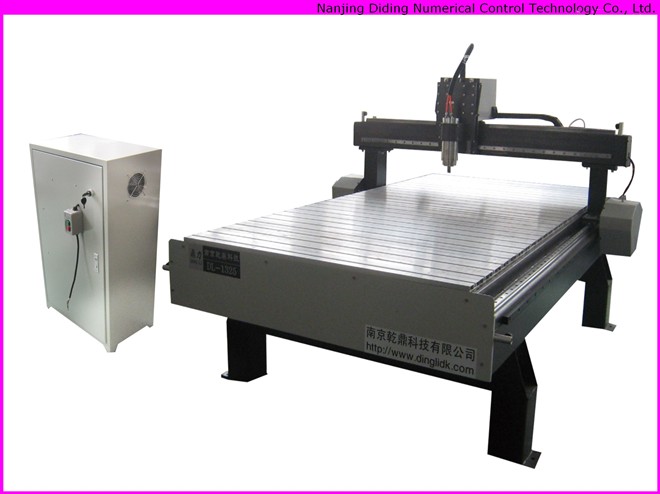

cnc Woodworking machinery
|
|
Working Zone: (X Y Z)
|
1200×2400×120mm
|
|
Table Size (W×L)
|
1350×2700mm
|
|
Resolution
|
<0.003mm
|
|
Cutting Accuracy
|
±0.02/300mm
|
|
Repositioning Accuracy
|
±0.01mm
|
|
Axis Drive System (X Y Z)
|
Rack and Pinion
|
|
Drive Type
|
Stepper motor
|
|
Spindle
|
3.5 KW liquid-cooled with 24,000rpm
|
|
Max. Working speed
|
28,000mm/min
|
|
Collets Type
|
3.175mm/ 4mm/ 6mm/8mm/12.7mm
|
|
Command Code
|
G*.u00*.mmg*nc.,HPGL
|
|
Operational System Software
|
Type 3/Artcam/Castmate/Wentai
|
|
Control System
|
NC studio
|
|
Interface
|
PCI
|
|
Max. Power Consumption
|
4.5KW
|
|
Voltage
|
AC220V±10%/50~60Hz
|
|
Standard Work Surface
|
Aluminum profiles
|
|
Weight
|
1000kg±10%
|
|
Warranty
|
12 Months (spindle: 6 months)
|
Product feature

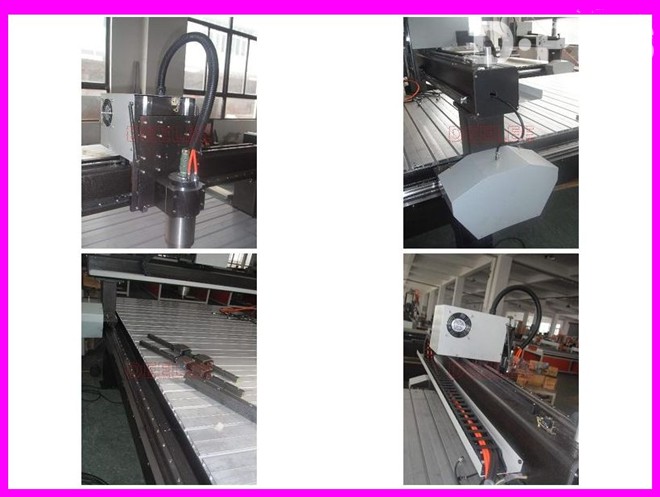

The lathe is founded by high-quality steel that ensures the high stability,all the three axises are using imported straight-square rail.
Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.
Using high accurate pinion and rack transmission. The highest speed is 28m/min. It can clearly engrave the 1mm small word.
Spindle adopts domestic 3.5KW water-cooling motor, which is very powerful and with little noise .It can work continuely without maintaining.
Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.
Advanced industrial controlling system is compatible to many dictate formats that can operate after accident or next day processing so it is very convenient.
